7498210220A Tab Up SMT RJ45 Connector For PoE RMT-462A-12F6-GY

Basic Information
Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHCONN
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: RMT-462A-12F6-GY
Minimum Order Quantity: 1000PCS
Price: Negotiable price
Packaging Details: 100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ; vacuum package,boxes in carton
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 5000000 PCS/Week
Detail Information
Pin Type: SMT Phase: Single
Speed: 10/100/1000 Base-T Main Customer: Tyco ,trp , Amphenol
Usage: Electronic,Pulse Oem: Offered
Rj45 Connector Application: SOHO\LAN-on-Motherboard\Hub\Switch Type: Rj45 Connector With Transformer
High Light:

board to board connector

,

fpc connector 0.5mm pitch

,

Tab Up SMT RJ45 Connector


Product Description

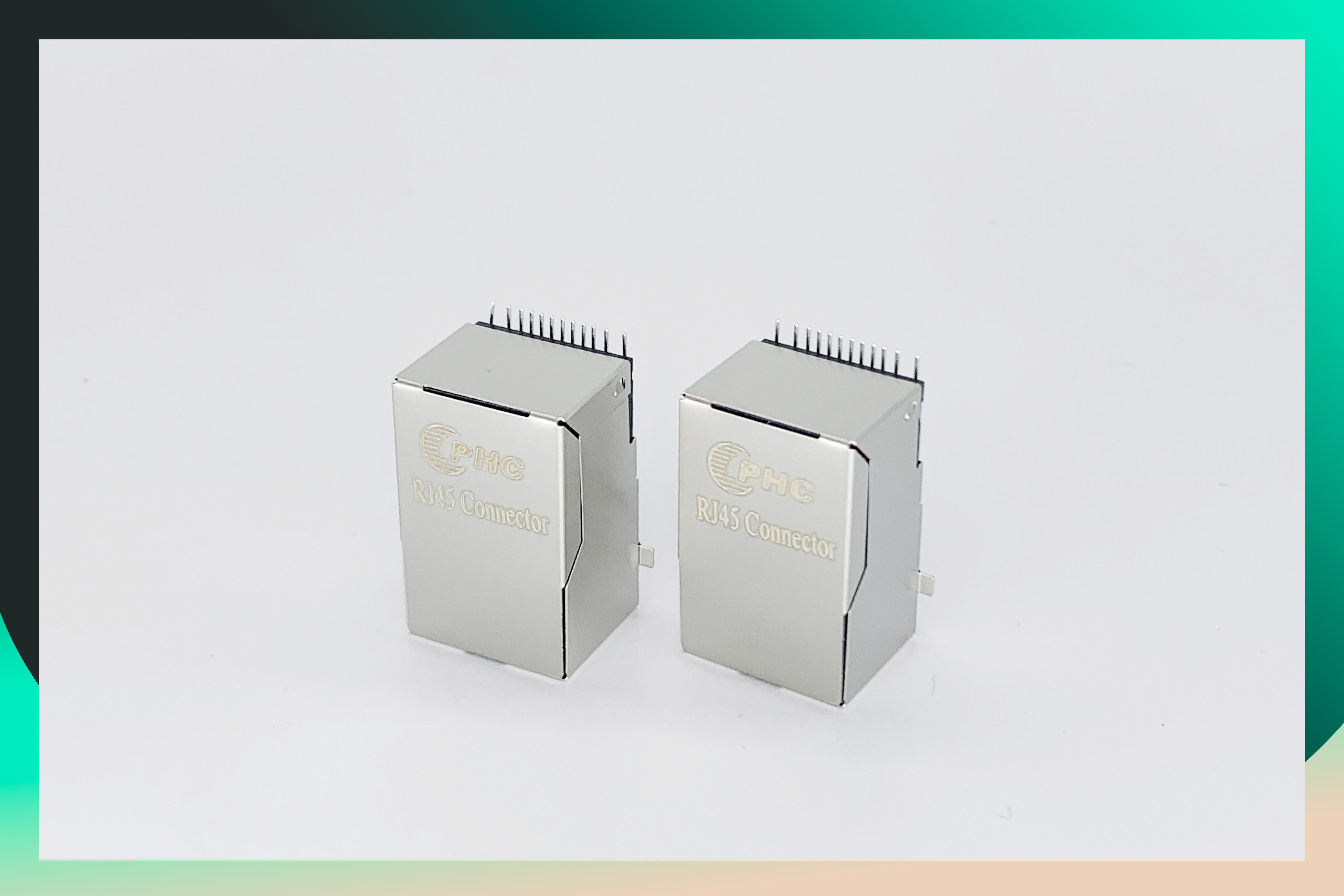

7498210220A Tab Up SMT RJ45 Connector With 10/100 Magnetic For PoE RMT-462A-12F6-GY


PHC operates and specializes in the provision of RJ45 Modular Connector networking connectivity alongside solutions
in the field of telecom and datacom; PHC offers a broad range of RJ45 Modular Connectors for your data and signal transmissions.

Our RJ45 Modular Connectors are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded,
Gold plating /non-gold plating with EMI Finger/LED options.

Specifications

Series Connectors, Interconnects
Connector Type RJ45 Modular Jack
Mounting Type Thru-Hole
Orientation 8P8C Side Enter
Termination Solder
LED Color Yellow / Green
Shielding Shield


NOTES:

ELECTRICAL:
1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:
1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:
1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

Drawing

10/100Base-TX Modular Plug 100M SMT Ethernet Jack Tab UP 12-Pin with LED RJ45 Connector and Transformer ​
7498210220A Tab Up SMT RJ45 Connector For PoE RMT-462A-12F6-GY 0


Why Choose PengHui

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .
All the step are doing by ourself . So we can control the quality .

Manufactured under strict controls RoHS compliance
ISO 9001:2008 OEM for PULSE
UL Certification Active Environmental policy
Reach Cetitifaction Every module tested 3times (not just batch tested)



Unit Price

Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent

Production&Testing
PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.

Service
PHC Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save time.
3. Free Samples:3-5 PCS of each part number.
4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
5. Customer complaint:24-48 hours reply 8D report.
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits if
customers are not satisfied)

Lead Time
With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the fastest
Lead time,and the particular case is according to the situation.


Case.1 Stock 25%
Case.2 3-4 Weeks 70%
Case.3 5-6 Weeks 5%



Design &Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project.Design a new tooling time : 30-45 workdays
PHC Patented product in China

7498210220A Tab Up SMT RJ45 Connector For PoE RMT-462A-12F6-GY 1
