8P Internal Magnetic RJ - 45 With Transformer Shielded LED Color No EMI For Set Box

Part Number

Part Number

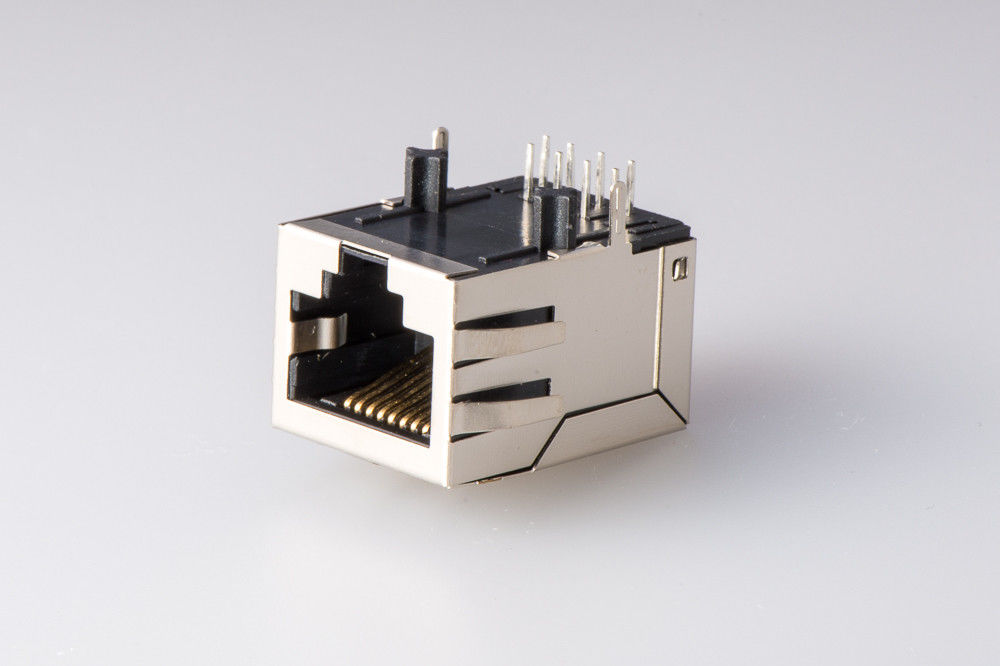

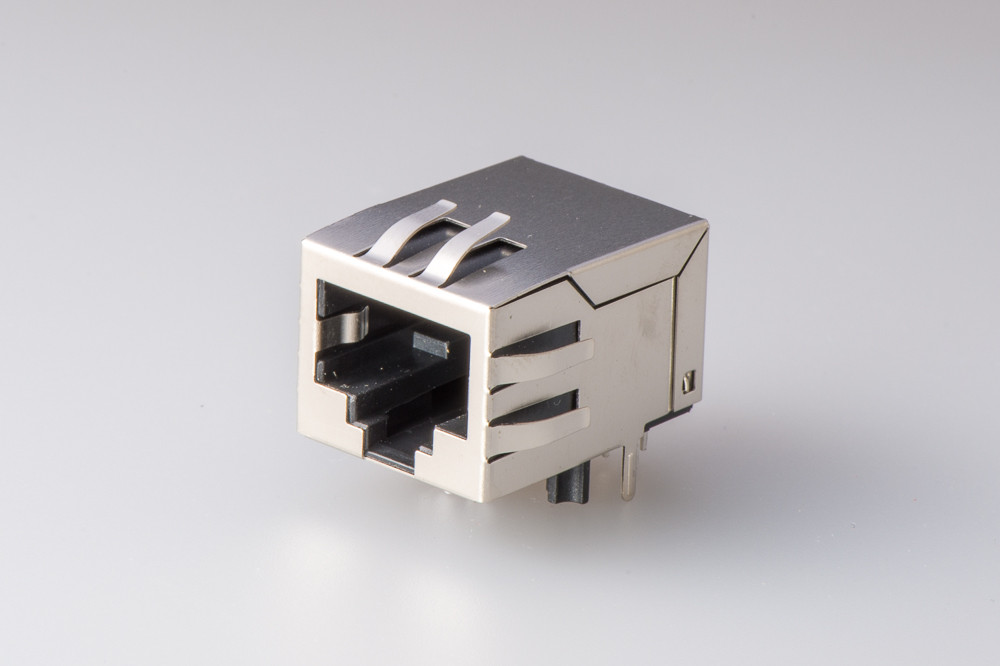

10 / 100BASE 1x1 Tab Down Transformer RJ45 without  LED ( RMS-007A-08W6-NL-M )



Connector Type


Mounting Type

Connectors, Interconnects

PHC RJ45 Jack

10/100 /1000Mbps

insert Board




LED Color


90° Angle (Right) Side enter






1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
2. High performance for maximum EMI suppression
3. 350uH minimum OCL with 8mA bias current

Current rating1.5A
Voltage rating125V AC
Insulation resistance500MΩ min
Contact resistance30MΩ max
Withstanding voltageAC 1500V RMS 50Hz or 60Hz 1 min
Insertion loss-1.2dB Maximum at 100kHz-100MHz
Return loss-18dB minimum at 1MHz-30MHz
 -14dB minimum at 30MHz-60MHz
 -12dB minimum at 60MHz-80MHz
Common mode rejection-30dB minimum at 1MHz-100MHz
Cross talk-30dB minimum at 1MHz-100MHz
Insertion force2 contacts 350g
4 contacts 500g
6 contacts 750g
8 contacts 900g
10 contacts 1050g
Retention strength7.7KG.F min between jack and plug
Durability800 mating cycles min
HousingABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
Contact wireDiameter 0.45mm phosphor bronze gold plating over nickel  0.35mm thickness phosphor bronze alloy selective gold plating over nickel
Shield0.20-0.25mm thickness brass with tin plated
Gold plating3u",  6u", 15u", 30u",  50u"
LED specificationsStandard LED colorLED wavelengthForward      (V max)Typical  (V TYP)Luminous intensity
Green560-580 nm2.5V2.1-2.2V9-25 MCD
Yellow580-610 nm2.5V2.1-2.2V9-30 MCD
Orange580-610 nm2.5V2.1-2.2V50-100 MCD
  1. LED intensity/wavelength measured with photo research PR-650 colormeter
  2. With a forward current of 20mA, absolute maximum ratings (Ta=25°C)
RoHS peak wave solderRoHS-5 peak wave solder temperature rating 235 ±5°C
 RoHS-6 peak wave solder temperature rating 260 ±5°C
Operating and storage temperature
Operating temperatures-40 to 85°C
Storage temperatures-40 to 85°C
Networking productsNIC, hub, switch, router, bridge, work
StationPC/system, printer, server, NB,ia cable modem, XDSL application, set-top-box

10 / 100BASE 1x1 Tab Down Transformer RJ45 without  LED ( RMS-007A-08W6-NL-M )
