| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PHCONN |
| Certification: | UL,ROHS,SGS |
| Model Number: | RMP-749A-12F4-G2-HF |
| Minimum Order Quantity: | 1000 pcs |
| Price: | Negotiated price |
| Packaging Details: | The product is packed with PVC box |
| Delivery Time: | 30-40 days |
| Payment Terms: | 100% T/T First |
| Supply Ability: | 10000pcs/3weeks |
| Application: | Internet Cable | Material: | LCP |
|---|---|---|---|
| Connector Type: | Ethernet RJ Connector | Insulation Resistance: | 1000 Megohms Min @ 500 Vdc |
| Keywords: | Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket | Shield: | COPPER ALLOY(OR STEEL ALLOY) 0.20mm THICKNESS PLATING Nl |
| Certification: | ROHS,ROHS UL CEM | Working Temperature: | -20℃~80℃ |
| High Light: | Tab Up RJ45 PoE Ethernet Connector,PoE Ethernet Connector HFJT1-1GHP-L17RL,HFJT1-1GHP-L17RL Power Over Ethernet Connector |
||

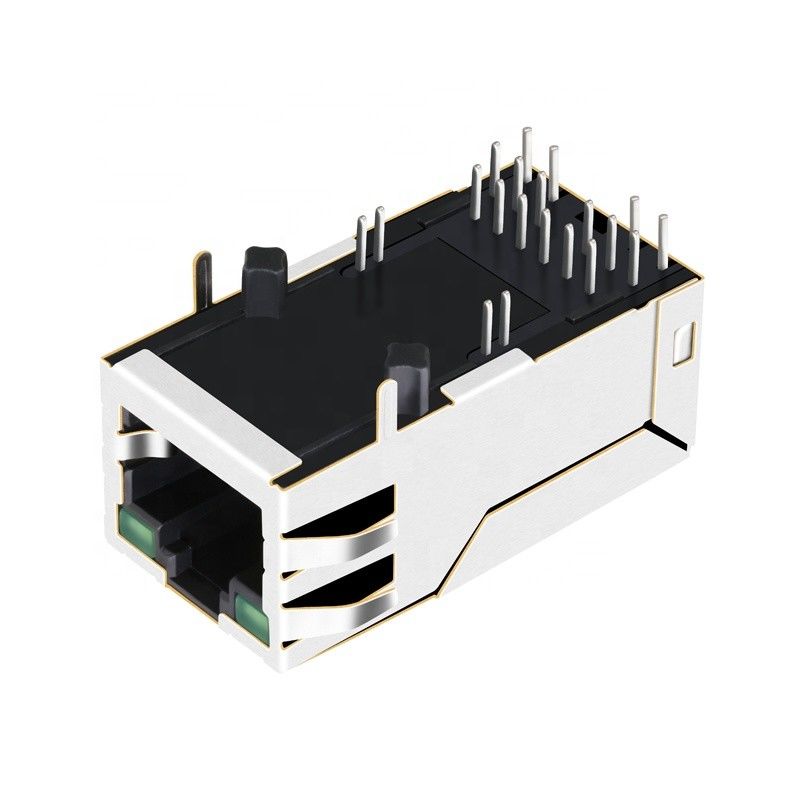

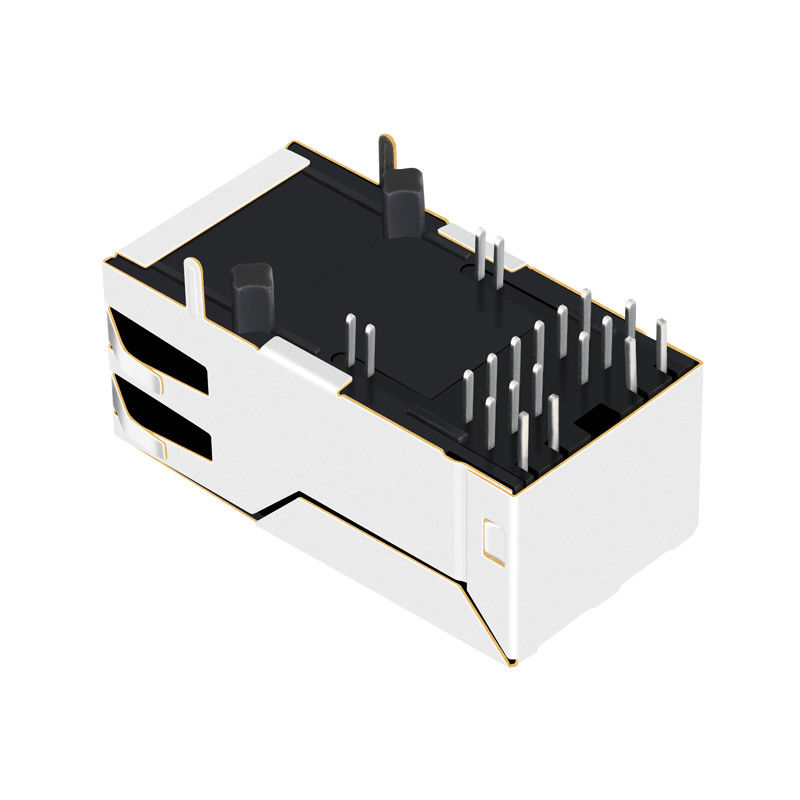

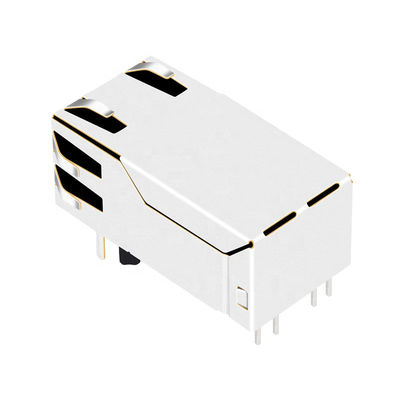

Tab Up 1000 Base-T Single Port PoE+ Ethernet RJ45 Connectors HFJT1-1GHP-L17RL
| Description |
RJ45 1X1 Tab Up T/H, Slim, Sink 10/100/1000 Base-T |
| Contact Area | Contact Area : 15μ'' Min. Gold |
| LED | L-Green; R-Green/Orange |
REQUIRE MENTS:
Feature:
Complies with IEEE802.3ab standards and
Specifications including 350uH with 8mA DC bias
Housing: LCP UL94V-0 ,Black(Halogen Free)
Case : LCP,Black(Halogen Free)
Contact :Phosphor Bronze C210-H,Thickness=0.30mm plated
Nickel 30u" Min, Gold plated on contact area 15u" .
Input Terminal : C2680-H ,Thickness=0.35mm
Finish : 100μ" min Tin over 50μ" m in Nickel
Metal shielding:Copper alloy with Nickel plated(C2680),
Thickness=0.20mm Ni 30u" Min
Different color of LEDs option available
Operating temperature:0°C to +70°C
Storage temperature: -40°C to +85°C
RJ45 specifications:
Electrical characteristics
