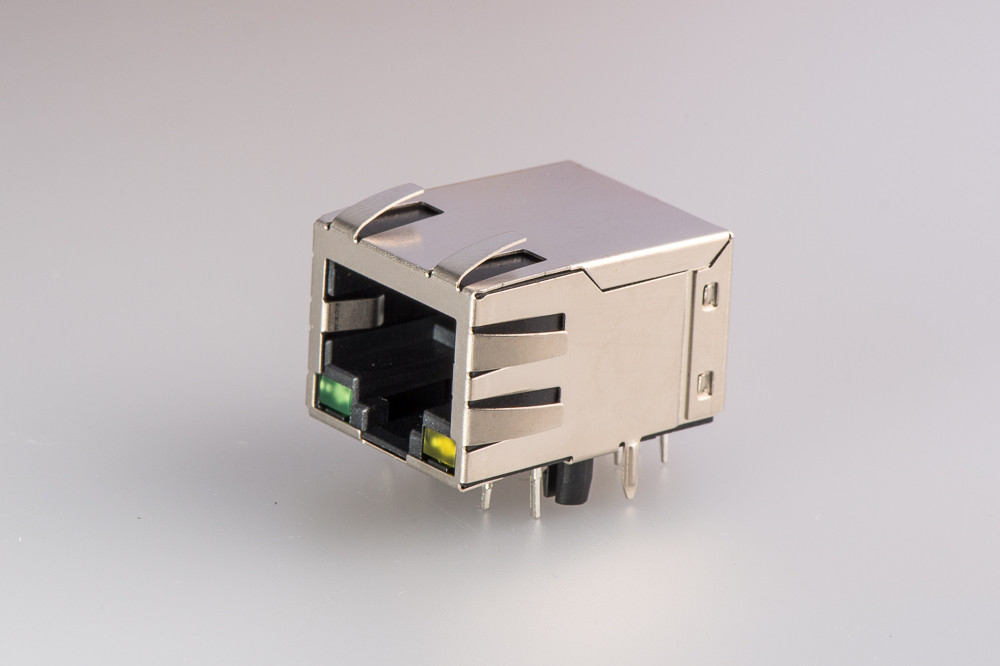

90 Degree RJ45 Ethernet Jack 10P10C 1 Ports and Integrated Magnetic Connector

Basic Information
Place of Origin: GuangDong, China
Brand Name: PHCONN
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: RMS-130B-10F6-GY
Minimum Order Quantity: 500 PCS
Price: USD 1.0 ~ 2.0 PCS
Packaging Details: 80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
Delivery Time: 3-30 work days
Payment Terms: T/T, L/C, D/A, D/P, PAYPAL
Supply Ability: 2,000,000pcs/Month
Detail Information
Shield Material: Brass Alloy Plastic: PBT Black
Terminal: Phosphor Copper Application: 1 Port 10 / 100 / 1000 Base - T
Main Products: RJ45 , Side Entry Low Profile Rj45 Jack Withstanding Voltage: AC 1500V RMS 50Hz Or 60 Hz 1 Min
Shielding Shell Plating: Nickel Gender: Female
RJ45 PCB Modular Jack: 10P10C Plating: Gold Plated 1u"
High Light:

rj45 network port

,

rj45 connector jack

,

10P10C 1 Ports rj45 ethernet connector


Product Description


90 Degree RJ45 Ethernet Jack 10P10C 1 Ports and Integrated Magnetic Connector


Spectifications



Feature:


1. Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH with 8MA DC bias
2. Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing:Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃


Peak reflow temperature rating 245℃


1. Minimum1500Vrms isolation perIeee 802.3requirement



Electrical Specifications:


1.Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec


Lead-free process,compliant RoHS





LED Specification



Standard LED Color:  LED Wavelength:  Forward      (V MAX): Typical  (V TYP): Luminous
Green 560-580 nm 2.5V 2.1-2.2V 9-25 MCD
Yellow 580-610 nm 2.5V 2.1-2.2V 9-30MCD
Orange 580-610 nm 2.5V 2.1-2.2V 50-100MCD






Drawing



90 Degree RJ45 Ethernet Jack 10P10C 1 Ports and Integrated Magnetic Connector





90 Degree RJ45 Ethernet Jack 10P10C 1 Ports and Integrated Magnetic Connector 0
