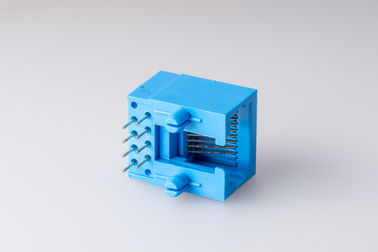

Color Blue 90 Degree Plastic RJ45 Female Jack 8P8C Single Port No Shield

Basic Information
Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHCONN
Certification: ISO9001 : 2008 , SGS , RoHs , UL
Model Number: 56 8P8C Single Port Modular Jack Yellow
Minimum Order Quantity: 500 PCS
Price: USD 0.2 ~ 0.5 PCS
Packaging Details: 100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ;
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000 PCS / Month
Detail Information
Gold-plated:: Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" Application: TV , Set Box , IP CAMER , DVR, VOIP , Computer
Gender: Female Jack Main Products: Magjack , RJ45 Jack , RJ45 Connector , RJ45 , Rj45 Socket
Project Application: Networking Solutions OEM/ODM: OEM Service Offered Design Service Offered Buyer Label Offered
Color: Bule ,Yellow, Black Option Material: PBT
High Light:

rj45 network port

,

rj45 ethernet connectors

,

no shiled rj45 female jack


Product Description



Color  Bule 90 Degree Plastic RJ45 Female Jack  8P8C Single Port no shiled





Specifications



  Series

  Connectors, Interconnects
  Connector Type

  RJ45 Modular Jack

  Mounting Type

  Thru-Hole

  Orientation

  8P8C Side Enter

  Termination

  Solder

  LED Color

  NO

  Shielding

  No Shield




ELECTRICAL:



1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.


MECHNICAL:


1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.


ENVIRONMENTAL:


1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)


MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.



Drawing



Color  Bule 90 Degree Plastic RJ45 Female Jack  8P8C Single Port no shiled

( PHC )





Color  Blue 90 Degree Plastic RJ45 Female Jack 8P8C Single Port No Shield 0
