| Place of Origin: | GuanDong , China ( Mainland ) |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001,SGS,UL,CE,REACH |
| Model Number: | 1060-208112 |
| Minimum Order Quantity: | 5000PCS |
| Price: | Negotiable price |
| Packaging Details: | 240 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ; vacuum package,boxes in carton |
| Delivery Time: | 3-30 work days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000000PCS/Week |
| Type: | Factory Manufacturer | Application: | PCB,Audio & Video,networking,Telecom,Signal |
|---|---|---|---|
| Color: | Black/White/OEM | Insulation Resistance: | 1000 Megohms Min @ 500 Vdc |
| Keywords: | RJ45 Modular Jack | Voltage Rating: | 125 VAC RMS |
| Package: | Tray | Sample: | Welcome Ask Sample For Testing |
| High Light: | PCB Mount RJ45 Connector,Gigabit RJ45 Connector |
||
Key Specifications/Special Features:

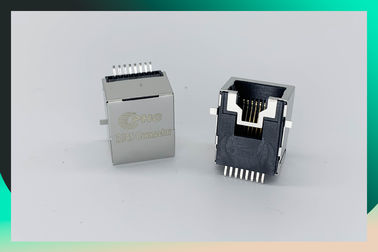

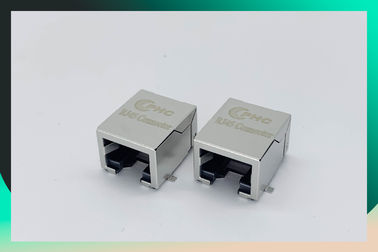

180° SMD RJ45 8P8C
Application: PCB, Computer, Communication
Shape: Rectangular
Production Process: Injection
Customized: Yes
Working Frequency: High Frequency
MATERIAL
1. HOUSING MATERIAL: GLASS FILLED POLYESTER UL94V-0PBT, NYLON
2. HOUSING COLOR: BLACK OR OTHERS
3. CONTACT MATERIAL: PHOSPHOR BRONZE φ
0.46mm
4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 3u"/6u"/15u"/30u"/50u"
5. SHIELD: 0.23 THICKNESS BRASS WITH NICKEL PLATED
6. LED: No LED
SPECIFICATIONS
ELECTRICAL
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.5 AMP
3. CONTACT RESISTANCE: 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE: 500 MEGOHMS MIN @500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTE
MECHANICAL
1. DURABILITY: 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER: 1 LB MIN
ENVIRONMENTAL
1. STORAGE: -40ºC~80ºC
2. OPERATION: 0ºC~70ºC
Drawing
Service
PHC Offer good pre-sales & after-sales service &Strong technical support
1) New Project: Strong technical and ideal support your new design
2) Existing projects: Try to help customer to save the cost to offer the good quality product and save
3) time.
4) Free Samples:3-5 PCS of each part number
5) Shipping Fee: We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6) Customer complaint:24-48 hours reply 8D report
7) Warranty: 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair
8) kits if customers are not satisfied)
Specifications
| Part Number | Manufacturer Part Number |
Manufacturer | Description |
| 1060-208112 | 1060-208112 | PHC | 180 Degree 8P8C SMD RJ45 Modular Jack Top Enter 8P8C Female Connector |
| Series | Connector Type | Applications | Mounting Type |
| Connectors, Interconnects | PHC RJ45 Female | Jack | SMD |
| Orientation | Termination | LED Color | Shielding |
| 180° Angle (Right) top enter | Solder | No |
Without Shielded |
Why Choose PengHui
Quality :
Production And Testing Equipment
World’s Leader supplier of Integrated RJ45 Connector and PCB connector
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing , packing .All the step are
doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
Unit Price
Charge only 35~60% of Pulse , (Midcom), Both hand Belfuse, Tyco, Halo,...Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipment to the product as possible
PHC consists of 3 subordinations, located partly in Hunan , Hubei , Guangdong (PHC)
With the large scale of production lines, we can reach to cost reduction at the most extent
Design&Technical strength
We have many more than 20years experience in connector industry engineer can support your new
project. Design a new tooling time:30-45 workdays
Production&Testing
PHC have more than 30 units automation equipment to the product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
