2250030-1 1 Port POE RJ45 Jack With 10 / 100 / 1000 Base-T Transformer For Router

Basic Information
Place of Origin: GuanDong , China ( Mainland )
Brand Name: PHCONN
Certification: ISO9001 : 2008 , SGS , RoHs , UL
Model Number: RMS-130B-10A6-GY
Minimum Order Quantity: 500 PCS
Price: USD 0.6 ~ 1.0 PCS
Packaging Details: 80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
Delivery Time: 7 - 10 Work Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5,000,000 PCS / Month
Detail Information
Gold-plated:: Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" Application: TV , Set Box , IP CAMER , DVR, VOIP , Computer
PCB Mount Angle: Side Enter Main Products: Magjack , RJ45 Jack , RJ45 Connector , RJ45 , Rj45 Socket
PCB Termination Type: Soder Number Of Contacts Loaded: 10P
High Light:

poe rj45 connector

,

4 port rj45

,

single port poe rj45 jack


Product Description

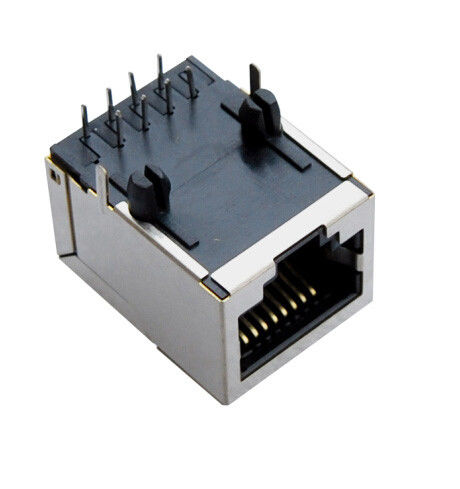

Single Port POE RJ45 Jack With 10 / 100 / 1000 Base-T Transformer For Router


Specifications


Part Number

Manufacturer
Part Number

Manufacturer

Description

RMS-130B-10A6-GY

RMS-130B-10A6-GY

PHC

Single Port POE RJ45 Jack With 10 / 100 / 1000 Base-T Transformer For Router



Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

PHC RJ45 Female

10/100 /1000 Mbps

Insert Plate



Orientation

Termination

LED Color

Shielding

90° Angle (Right) Side enter

Solder

G/Y

Shielded





Electrical Requirement:

1. RATING VOLTAGE: 150V AC MAX.
2. RATING CURRENT: 1 AMPHERES MAX.
3. CONTACT RESISTANCE: [30] MILLIOHMS MAX. (INITIAL), [50] MILLIOHMS MAX. (FINAL).
4. DIELECTRIC WITHSTANDING VOLTAGE: NO CREEPING DISCHARGE OR FLASHOVER SHALL OCCU     R.
5. CURRENT LEAKAGE: 1MA MAX. [500]VAC FOR 1MINUTE.
6. TEST BETWEEN ADJACENT CIRCUITS OF UNMATED CONNECTOR


MECHNICAL:

1. HOUSING MATERIAL:GLASS FILLED POLYESTER(UL94V-0).
2. CONTACT MATERIAL:PHOSPHOR BRONZE T=0.46MM (C5 100).
3. PLATING:GLOD PLATING OVER NICKEL.
4. DURRABILITY:750 CYCLES MIN.
5. PCB RETENTION PRE-SOLDER:1 LB MIN.
6. PCB RETENTION POST-SOLDER:10 LB MIN.


ENVIRONMENTAL:


1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

Drawing

Single Port POE RJ45 Jack With 10 / 100 / 1000 Base-T Transformer For Router
( PHC )
