100 Base Lan Board To Board Connector Tab Down Connector 1 Port 21.1mm

Basic Information
Place of Origin: GuangDong
Brand Name: PHCONN
Certification: ISO9001-2008 , RoHs , UL , SGS
Model Number: RMS-059A-08W6-NL
Minimum Order Quantity: 500pcs
Price: USD0.65 - 0.72 PCS Get latest price
Packaging Details: 80pcs / Tray
Delivery Time: 24-30 work days
Payment Terms: D/A, D/P, L/C, T/T,paypal
Supply Ability: 1000,000pcs/Month
Detail Information
Product Name: RJ45 With Transformer Housing: Phenolic, PBT Black (UL94V-0)
Type: RJ45 Female LED Color: NO
Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS Orientation: 90 Degree, Side Enter
Shield RJ45: Yes No.Port: RJ45 Single Port
High Light:

fpc zif connector

,

fpc connector 0.5mm pitch


Product Description



100 Base Lan RJ45 With Transformer Tab Down Connector 1 Port 21.1mm





Specifications



Part Number

Manufacturer

Part Number

Manufacturer

Description

RMS-059A-08W6-NL

RMS-059A-08W6-NL

PHC

100 Base Lan RJ45 With Transformer Tab Down Connector 1 Port 21.1mm



Series

Connector Type

Applications

Mounting Type

Connectors, Interconnects

PHC RJ45 Female

10/100 /1000Mbps

insert plating



Orientation

Termination

LED Color

Shielding

90° Angle (Right) Side enter

Solder

No

Shielded





Feature:


1. Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH

    with 8MA DC bias
2. Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing:Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃


Peak reflow temperature rating 245℃


1. Minimum1500Vrms isolation perIeee 802.3requirement



Electrical Specifications:


1. Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec


Lead-free process,compliant RoHS



Drawing



100 Base Lan RJ45 With Transformer Tab Down Connector 1 Port 21.1mm

(PHC)

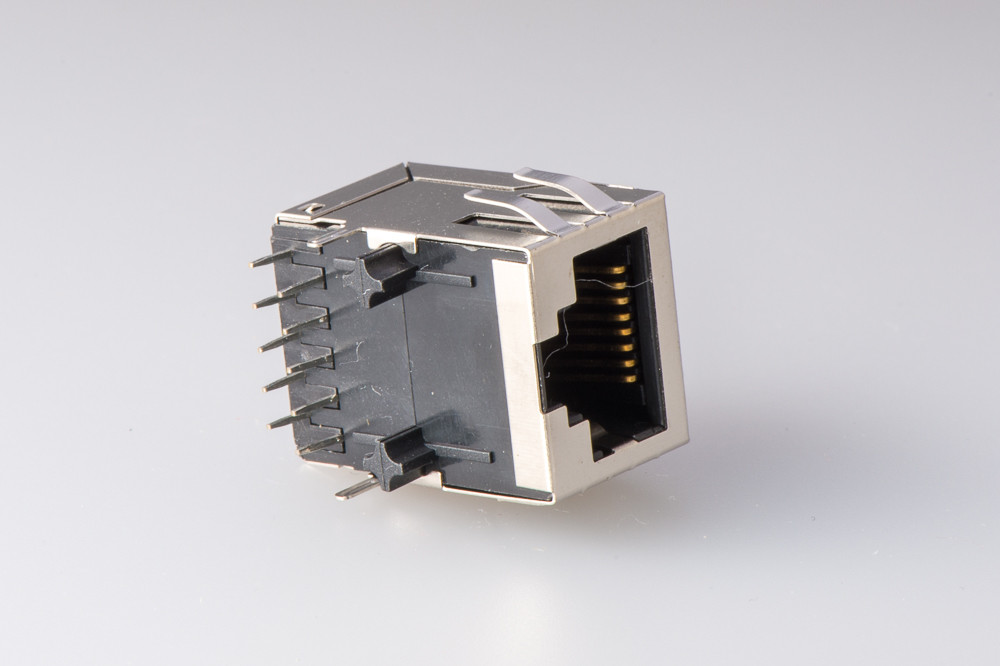

100 Base Lan Board To Board Connector Tab Down Connector 1 Port 21.1mm 0





100 Base Lan Board To Board Connector Tab Down Connector 1 Port 21.1mm 1





Why Choose PengHui Quality



Quality :



World’s Leader supplier of Integrated RJ45 Connector and PCB connector



Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing,

packing .All the step are doing by ourself. So we can control the quality.



1) Manufactured under strict controls.

2) ISO 9001:2008

3) UL Certification

4) Reach Cetitifaction

5) RoHS compliance

6) OEM  for PULSE

7) Active Environmental policy

8) Every module  tested 3times  (not just batch tested)



Unit Price

Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in  Hunan ,Hubei ,Guangdong (PHC)
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength


We have many more than 20years experience in connector industry engineer can support

your new project.Design a new tooling time:30-45 workdays



Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every  Magnetic RJ45 tested 3times  (not just batch tested)
PHC Every SMT part used Automation testing and packing.
