Home > Products> SMD RJ45> 8- Pin EMI SMT RJ45 Female Connector With LED 10/100 Base And Magnetic SMD

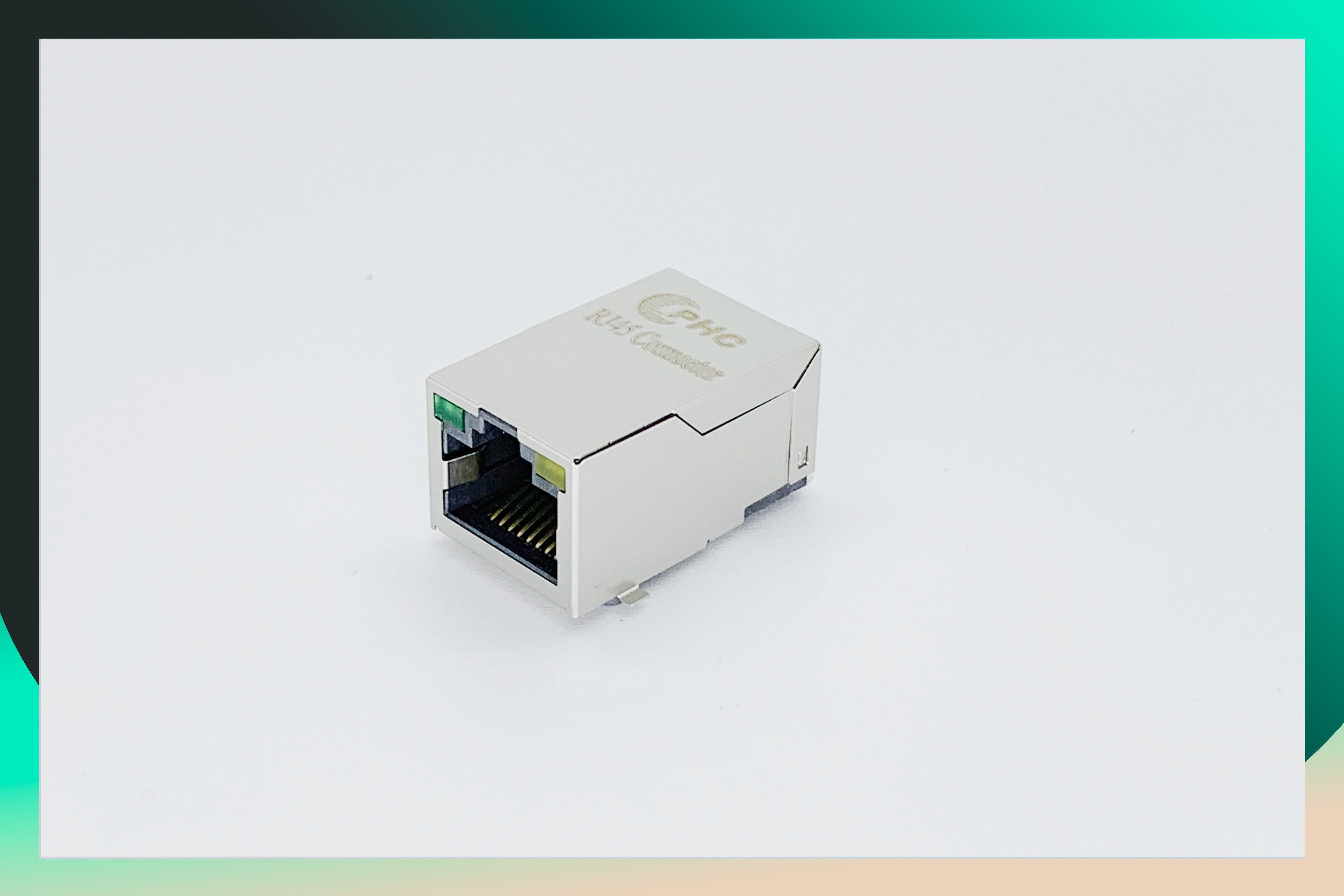

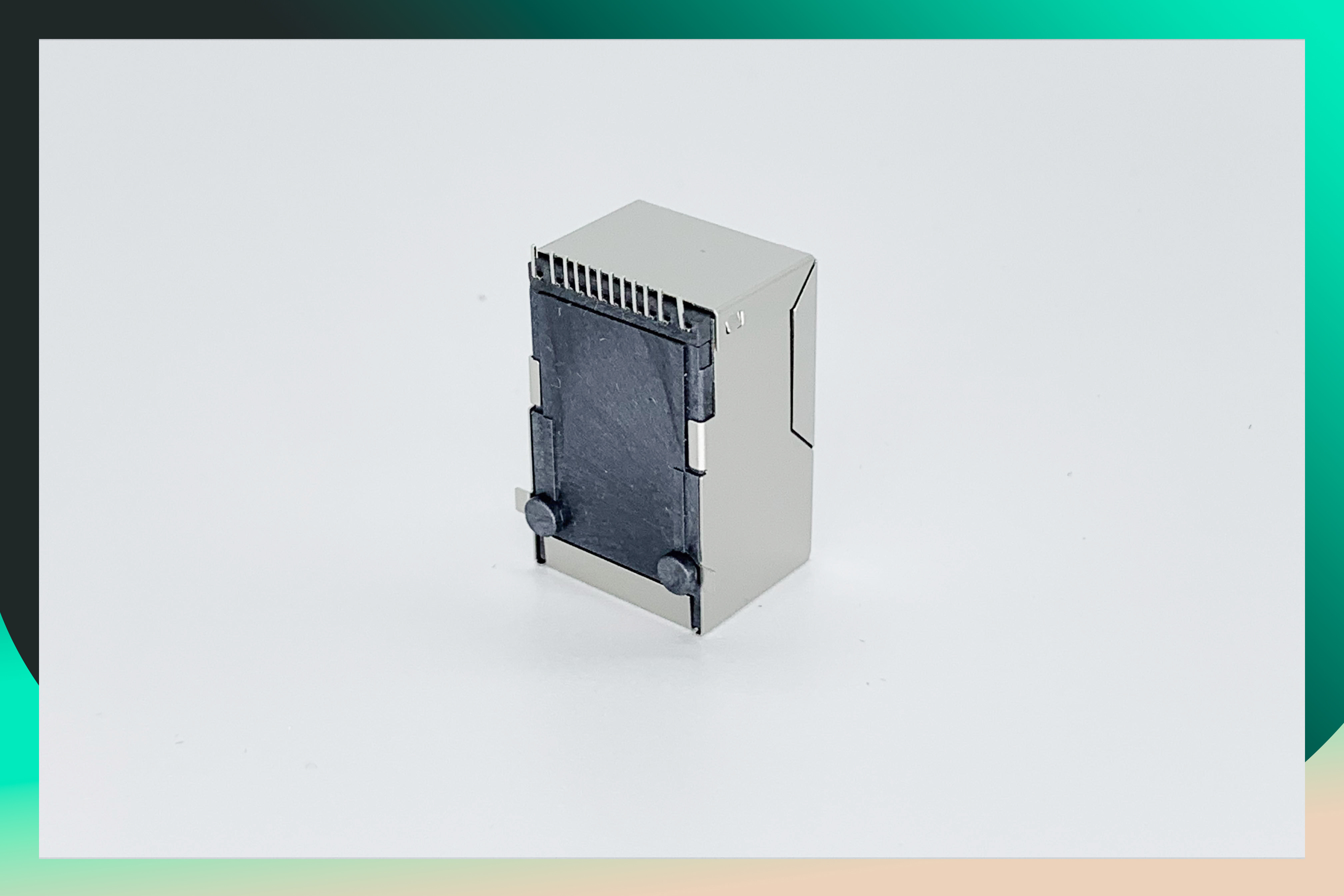

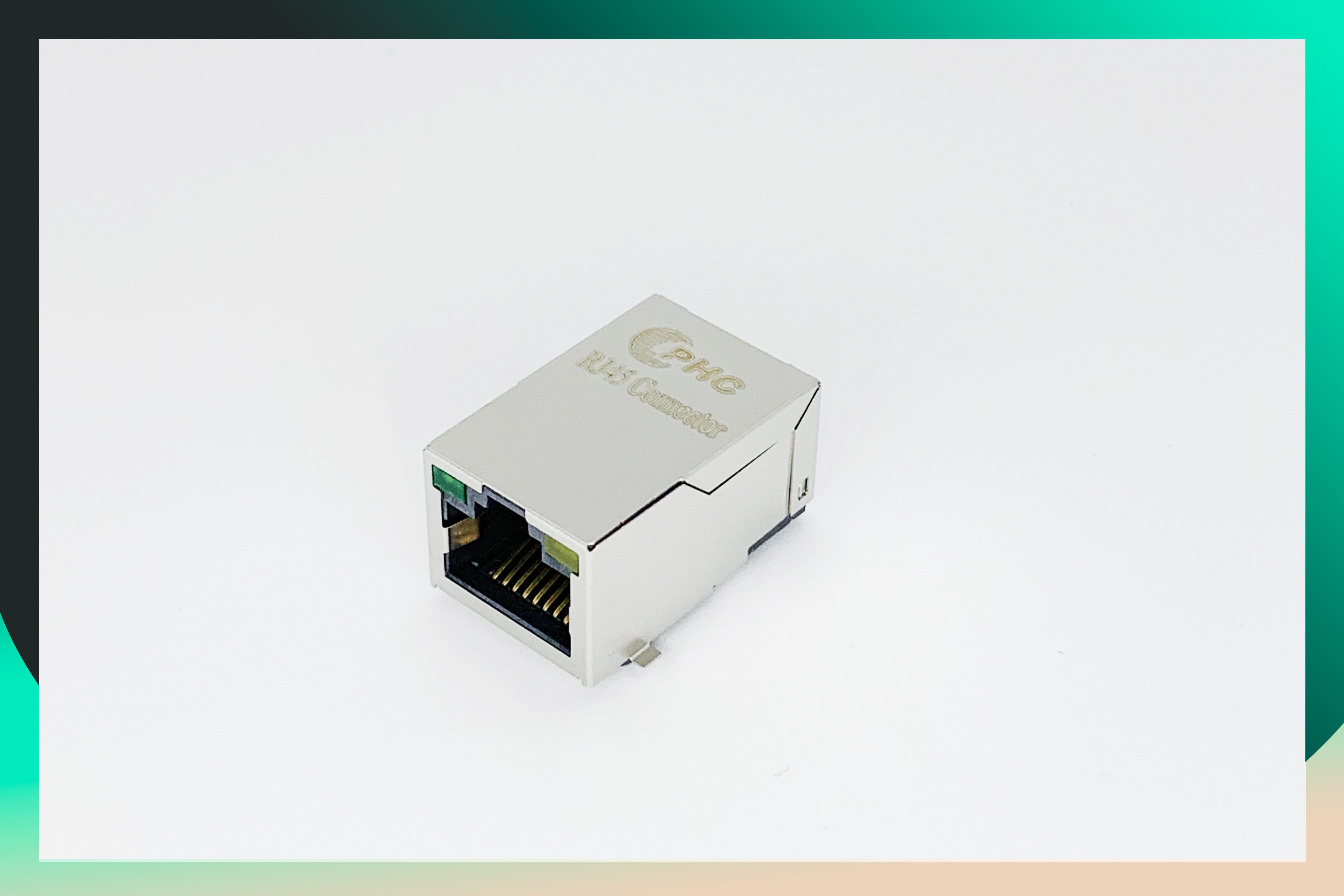

8- Pin EMI SMT RJ45 Female Connector With LED 10/100 Base And Magnetic SMD

8- Pin EMI SMT RJ45 Female Connector With LED 10/100 Base And Magnetic SMD
8- Pin EMI SMT RJ45 Female Connector With LED 10/100 Base And Magnetic SMD 8- Pin EMI SMT RJ45 Female Connector With LED 10/100 Base And Magnetic SMD 8- Pin EMI SMT RJ45 Female Connector With LED 10/100 Base And Magnetic SMD
Basic Information
Place of Origin: GuangDong, China
Brand Name: PHCONN
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: RMT-462A-12F6-GY
Minimum Order Quantity: 1000PCS
Price: Negotiable price
Packaging Details: vacuum package,boxes in a catrton
Delivery Time: 3-30 work days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 5000000PCS/Week
Get Best Price Contact Now
Detail Information
Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket Product Name: RJ45 Connector
Color: Customize Insulation Resistance: 500 MΩmin
Current Rating: 1.5AMP Contact Resistance: 30 MΩmax
Shielding: Shielded,EMI Finger Voltage Rating: 125vac
Highlight:

PCB Mount RJ45 Connector

,

Gigabit RJ45 Connector

Product Description

8-Pin EMI SMT RJ45 Female Connector with LED 10/100Base and Magnetic SMD



8-Pin EMI SMT RJ45 Female Connector with LED 10/100Base and Magnetic SMD
LINK-PP Part Number RMT-462A-12F6-GY
Part Number SMT RJ45 With Transformer
Application-Lan ETHERNET(NoN-PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Green
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type Surface Mount
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100/1000 Base-T
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
