| Place of Origin: | GuanDong , China ( Mainland ) |
|---|---|
| Brand Name: | PHCONN |
| Certification: | ISO9001 : 2008 , SGS , RoHs , UL |
| Model Number: | 1060-208063 |
| Minimum Order Quantity: | 500 PCS |
| Price: | USD 0.4 ~ 0.7 PCS |
| Packaging Details: | 100 pcs in 1 tray , 36 tray ( 2500pcs ) in carton ; |
| Delivery Time: | 7 - 10 Work Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5,000,000 PCS / Month |
| Gold-plated:: | Fu" , 1u" , 3u" , 6u" , 15u" , 30u" , 50u" | Application: | TV , Set Box , IP CAMER , DVR, VOIP , Computer |
|---|---|---|---|
| Project Application: | Networking Solutions | OEM/ODM: | OEM Service Offered Design Service Offered Buyer Label Offered |
| High Light: | PCB Mount RJ45 Connector,Gigabit RJ45 Connector |
||

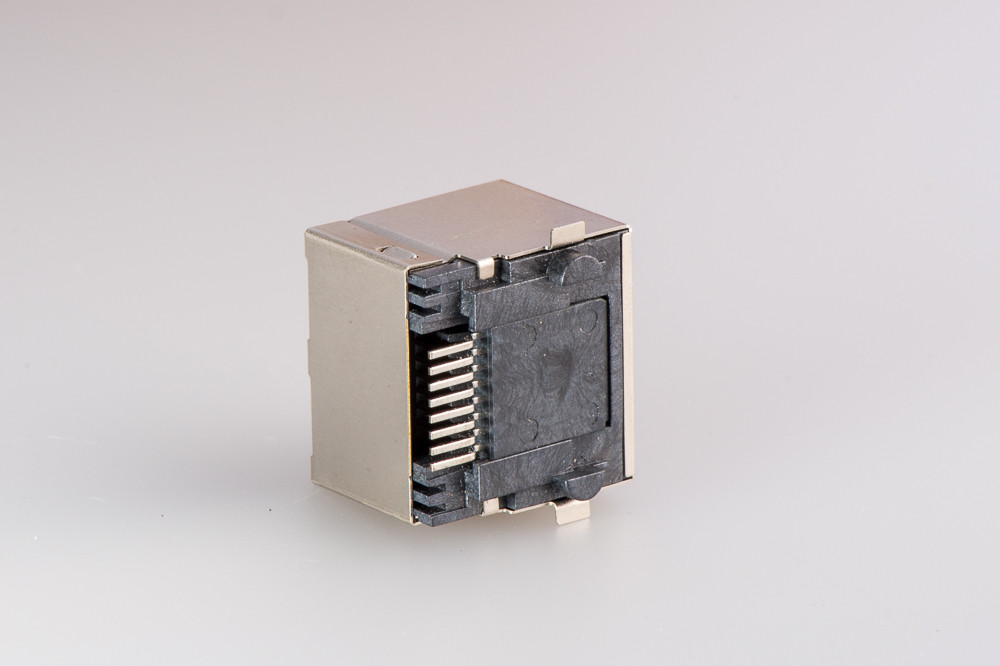

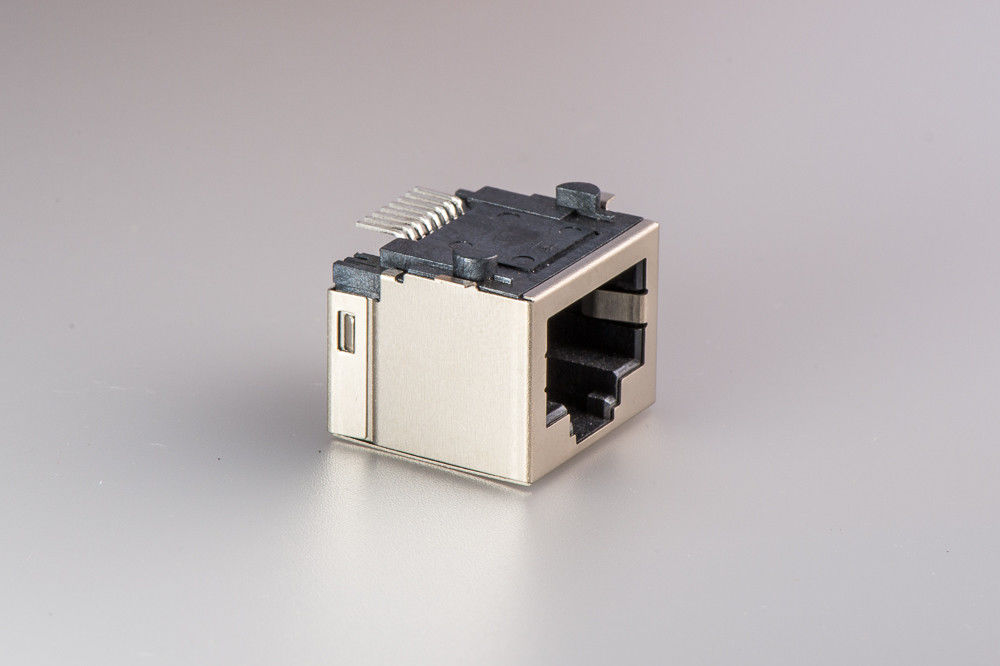

1060-20863 SMD RJ45 8P8C L=15.5MM RJ45 Modular Jack With LED Y / G Gold-Plated
Specifications
|
Series |
Connectors, Interconnects |
| Connector Type |
RJ45 Female Jack |
|
Mounting Type |
Thru-Hole |
|
Orientation |
8P8C Side Enter |
|
Termination |
Solder |
|
LED Color |
NO |
|
Shielding |
Shield |
ELECTRICAL:
1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.
MECHNICAL:
1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.
ENVIRONMENTAL:
1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)
MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.
Drawing
1060-20863 SMD RJ45 8P8C L=15.5MM RJ45 Modular Jack With LED Y / G Gold-Plated 6U
( PHC )
Why Choose PengHui
Quality :
Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing ,
packing .All the step are doing by ourself . So we can control the quality .
|
Manufactured under strict controls |
RoHS compliance |
|
ISO 9001:2008 |
OEM for PULSE |
|
UL Certification |
Active Environmental policy |
|
Reach Cetitifaction |
Every module tested 3times (not just batch tested) |
Unit Price
Charge only 35% ~ 60% of Pulse , (Midcom), Bothhand Belfuse, Tyco, Halo,....Etc
All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong .
With large scale of production lines, we can reach to cost reduction at the most extent
Production&Testing
PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.
Service
PHC Offer good pre-sales & after-sales service &Strong technical support
| 1. New Project: Strong technical and ideal support your new design |
|
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save. |
| 3. Free Samples:3-5 PCS of each part number. |
| 4. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast. |
| 5. Customer complaint:24-48 hours reply 8D report. |
|
6. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair kits i customers are not satisfied) |
| 7. time |
Design &Technical strength
We have many more than 20years experience in connector industry engineer can support
your new project.Design a new tooling time : 30-45 workdays
PATENTS PRODUCTS IN China
RJ45 With Transformers series
Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
------------- PHC Sales & Support Team
